A lifting column is a telescopic actuator designed to provide stable vertical movement, commonly used in applications requiring adjustable height or smooth lifting of loads. Unlike basic actuators, electric lifting columns combine motorized lifting with integrated guidance systems to ensure both stability and aesthetics.
These systems are widely used in medical devices, industrial workstations, smart furniture, and office desks, offering not only ergonomic benefits but also automation and intelligent control.
1. How Does a Lifting Column Work?
A lifting column system consists of a built-in linear actuator, telescoping tube segments, motor drive (typically 24V DC), control box, and optional remote or programmable controller.
Key Components:
Motorized drive (often integrated with a screw or belt drive)
Telescopic outer tubes (for height adjustability and load-bearing)
Control box or software (for synchronization or pre-set heights)
Sensors (optional for anti-collision, position feedback, etc.)
When activated, the internal actuator drives the column segments to extend or retract, creating a smooth, vertical motion. This motion is guided internally to maintain balance and alignment even under load.
2. Types of Lifting Columns
（1） Electric Lifting Column
The most common type
Powered by electric motors (typically 24V or 36V)
Quiet, energy-efficient, and easy to control
（2）Telescopic Lifting Column
Multi-stage design for compact retraction and long extension
Ideal for desks, hospital beds, and lifting monitors or TVs
（3）Single Stage vs. Multistage Lifting Column
Single-stage: simpler, cost-effective
Multi-stage: better stroke-to-height ratio, smoother operation
3. Applications of Lifting Columns

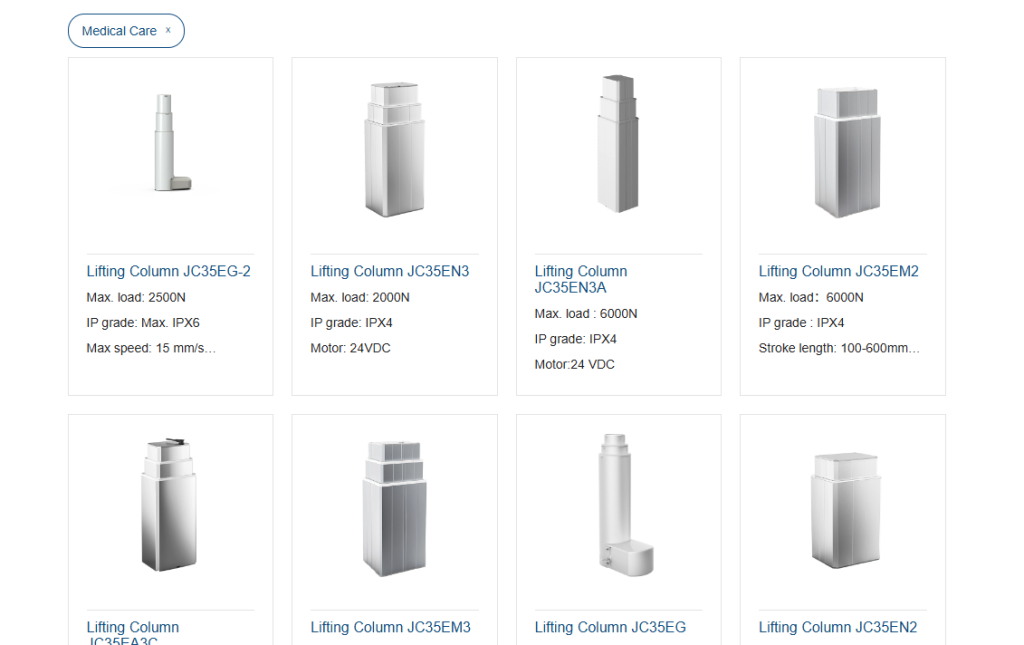

（1）Healthcare & Medical Equipment
Hospital beds, nursing tables, patient lifts
Smooth, quiet motion ensures patient comfort
Compliant with safety standards and hygiene requirements
（2）Ergonomic Office Furniture
Sit-stand desks and height adjustable workstations
Offers enhanced employee comfort and productivity
Easy integration with memory presets and anti-collision features
（3）Industrial & Manufacturing
Lifting and positioning systems for assembly lines
Adjustable platforms, monitor mounts, and operator interfaces
Synchronization across multiple columns for balanced lift
（4）Smart Home & Commercial Use
TV lifts, adjustable kitchen counters, display podiums
Seamlessly integrates with modern home automation systems
4. Key Benefits of Jiecang Lifting Columns
Smooth and Quiet Operation
Designed with low-noise motors and precision-guided structure
Ideal for noise-sensitive environments like hospitals or offices
Stable Lifting Performance
High load capacity and excellent stroke-to-height ratio
Internal guidance prevents lateral movement
Flexible Design Options
Customizable stroke length, speed, and shape
Compatible with various control solutions (wired, wireless, app)
High Integration
Easily integrates into multi-column systems
Sync multiple columns for even lifting with advanced control units
Global Certifications
CE, UL, RoHS, and FDA-grade material options
Designed for global markets with reliable technical support
5. Choosing the Right Lifting Column
When selecting a lifting column system, consider the following:
- Load capacity (kg or N)
- Stroke length (total travel distance)
- Retracted and extended height
- Speed of travel (mm/s)
- Control system compatibility (manual, remote, or software-controlled)
- Mounting and installation requirements
- Application environment (medical, office, factory, etc.)
Jiecang offers a wide range of electric lifting columns, from compact models for desks to heavy-duty industrial columns designed for machinery.
6. Why Choose Jiecang Lifting Columns?
As a leading global provider of motion control solutions, Jiecang offers:
- Over 20 years of experience in intelligent lifting systems
- Complete R&D and customization services
- Reliable lifting column systems for medical, office, industrial, and smart home use
- Global certifications and strict quality control
- Excellent after-sales support and international service network
Whether you’re designing a height adjustable workstation or upgrading medical lifting equipment, Jiecang’s lifting columns deliver precision, reliability, and innovation tailored to your needs.
Conclusion
A high-quality lifting column is crucial for creating ergonomic, automated, and adaptable systems across industries. From hospital beds to sit-stand desks and industrial machinery, these compact yet powerful actuators offer smart vertical motion with precision.
Choose JIECANG for advanced, customizable lifting column systems that meet the demands of tomorrow’s automation and ergonomic solutions. For more information about Lifting Column, please visit website at https://www.jiecang.com/
